Combi Oven i-Series (Boilerless / Direct Steam)

Kaite

Direct steam injection, boilerless design — simpler structure, less maintenance

Specifications

Control System: 10.1" HD touch screen with in-house developed control system; five modules: automatic, manual, rack timing, cleaning and help
Menu Storage: Storage for up to 1,000 menus, each with 20 programmable cooking steps
Temperature Accuracy: Ultra-high-density heating tubes with stepless two-way inverter fan; chamber temperature uniformity within ±1°C
Core Probe: 6-point core temperature probe for precise monitoring of food core temperature
Automatic Cleaning: Automatic cleaning with selectable modes; optimised cycle time and water consumption to cut cleaning cost
IoT Connectivity: Cloud recipe editing with one-click sync to stores; OTA updates, real-time status monitoring, fully encrypted data transfer
Chamber Material: S/S 304 chamber, triple-pane safety glass door, high-CRI LED illumination and dehumidifying valve
Data Compliance: Automatic memory data backup in line with HACCP; USB port for easy menu and programme updates
Optional: Integrated hand shower, recessed slag collection box, dual-way safety door lock
Stacked Solution: Stackable on a stand to save space; upper and lower units run different cooking modes independently, doubling throughput

Back to「Combi Steam Ovens」

Phone Email

Models & Specifications

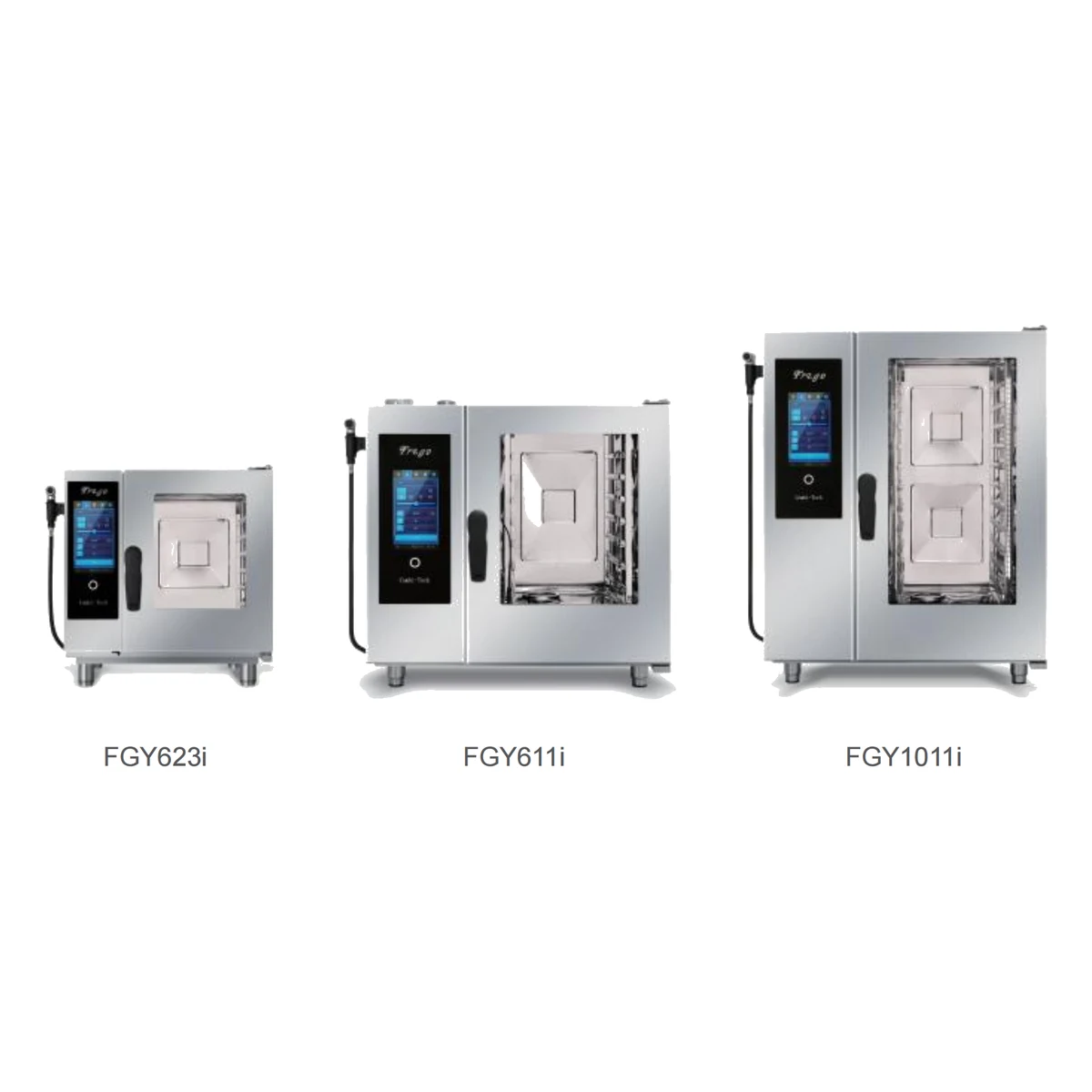

3 models available · This series is available in the following models. Compare the specifications below to choose the right capacity for your kitchen.

Parameter	FGY623i	FGY611i	FGY1011i
Partner Brands	6×GN 2/3	6×GN 1/1	10×GN 1/1
Partner Brands	208-240V 1N~ 50/60Hz	380-415V 3N~ 50/60Hz; 208-240V 3N~ 60Hz	380-415V 3N~ 50/60Hz; 208-240V 3N~ 60Hz
Partner Brands	4.5 kW	9.5 kW	18 kW
Partner Brands	(658+72)×657×731 mm	(853+75)×877×845 mm	(853+75)×877×1105 mm
Partner Brands	Without	Without	Without
Partner Brands	75 kg	130 kg	160 kg
Partner Brands	G 1/2″	G 1/2″	G 1/2″
Partner Brands	50 mm	50 mm	50 mm
