Kitchen EquipmentCombi Steam Ovens
Combi Oven b-Series (With Boiler)
Kaite
Built-in steam boiler for saturated, stable steam — ideal for heavy continuous output
Specifications
- Control System
- 10.1" HD touch screen with in-house developed control system; five modules: automatic, manual, rack timing, cleaning and help
- Menu Storage
- Storage for up to 1,000 menus, each with 20 programmable cooking steps
- Temperature Accuracy
- Ultra-high-density heating tubes with stepless two-way inverter fan; chamber temperature uniformity within ±1°C
- Core Probe
- 6-point core temperature probe for precise monitoring of food core temperature
- Automatic Cleaning
- Automatic cleaning with selectable modes; optimised cycle time and water consumption to cut cleaning cost
- IoT Connectivity
- Cloud recipe editing with one-click sync to stores; OTA updates, real-time status monitoring, fully encrypted data transfer
- Chamber Material
- S/S 304 chamber, triple-pane safety glass door, high-CRI LED illumination and dehumidifying valve
- Data Compliance
- Automatic memory data backup in line with HACCP; USB port for easy menu and programme updates
- Optional
- Integrated hand shower, recessed slag collection box, dual-way safety door lock
- Stacked Solution
- Stackable on a stand to save space; upper and lower units run different cooking modes independently, doubling throughput
Models & Specifications
4 models available · This series is available in the following models. Compare the specifications below to choose the right capacity for your kitchen.

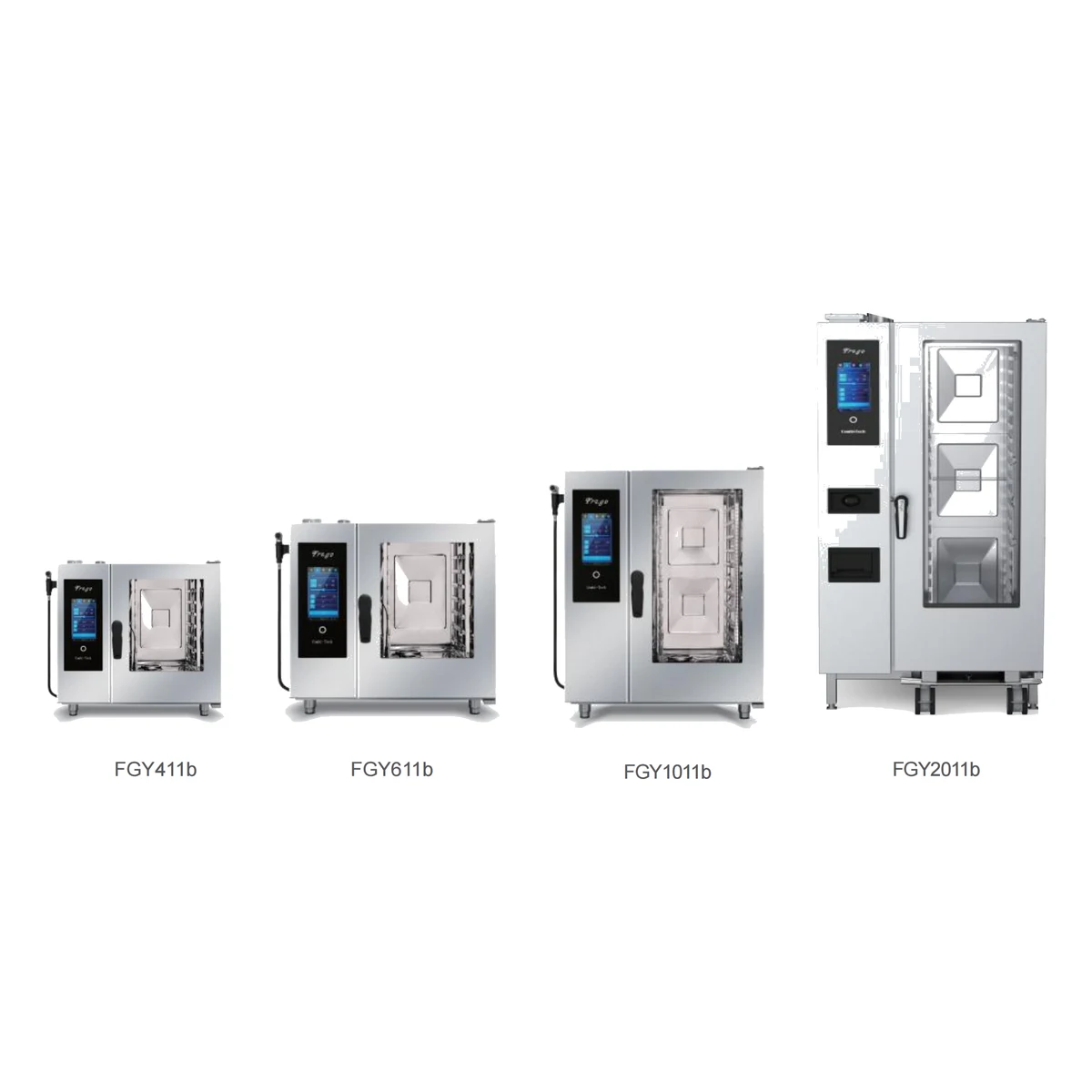

| Parameter | FGY411b | FGY611b | FGY1011b | FGY2011b |
|---|---|---|---|---|
| Partner Brands | 4×GN 1/1 | 6×GN 1/1 | 10×GN 1/1 | 20×GN 1/1 |
| Partner Brands | 380-415V 3N~ 50/60Hz; 208-240V 3N~ 60Hz | 380-415V 3N~ 50/60Hz; 208-240V 3N~ 60Hz | 380-415V 3N~ 50/60Hz; 208-240V 3N~ 60Hz | 380-415V 3N~ 50/60Hz; 208-240V 3N~ 60Hz |
| Partner Brands | 7.5 kW | 9.5 kW | 18 kW | 36 kW |
| Partner Brands | (853+75)×877×715 mm | (853+75)×877×845 mm | (853+75)×877×1105 mm | 853×940×1884 mm |
| Partner Brands | With | With | With | With |
| Partner Brands | 105 kg | 150 kg | 180 kg | 315 kg |
| Partner Brands | G 1/2″ | G 1/2″ | G 1/2″ | G 1/2″ |
| Partner Brands | 50 mm | 50 mm | 50 mm | 50 mm |
Product Brochure
Detailed functions, application scenarios and case references — click to enlarge.
